Row-Level Security

Row-Level Security (RLS) allows you to define fine-grained access control policies that determine which rows in a table a user can access. This ensures that users can only view or modify data they are authorized to see, enhancing data security and privacy.

RLS is a powerful feature for building secure, multi-tenant applications. When combined with SQLite Sync, it enables you to create robust local-first apps where user data is stored on the device for offline availability and superior performance.

This architecture simplifies development by allowing your application to interact with a local database while SQLite Cloud OffSync transparently handles the synchronization with a central database. RLS ensures that each user’s data is securely isolated during this process. The centralized database can then be used for powerful business analytics and reporting across all tenants, without compromising individual data privacy.

Policy Enforcement

RLS in SQLite Cloud operates based on the following principles:

Access is denied by default.

Unless explicitly allowed by RLS rules, access is blocked. Specifically:

• If RLS is enabled and rules are defined, only permitted operations will succeed.
• If RLS is enabled but a rule is missing for an operation (e.g., SELECT), that operation will be denied.
• If RLS is not enabled or not configured for a table, token-authenticated users won’t see any rows at all.

To make data accessible to token-authenticated users, you must both enable RLS for the table and define rules for the desired operations (like SELECT, INSERT, etc.).

Otherwise, they will be blocked from accessing any rows.

Configuring RLS

You can configure RLS policies for your databases through the SQLite Cloud dashboard.

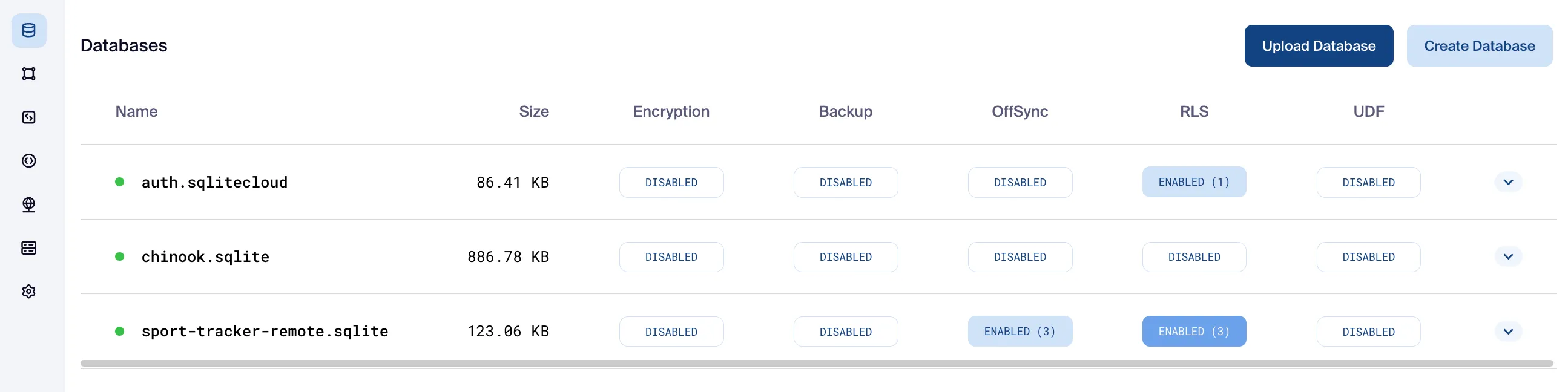

1. Navigate to the Databases Page: From the main dashboard, go to the “Databases” page.

2. Select the RLS Column: In the list of your databases, click on the button in the “RLS” column for the desired database.

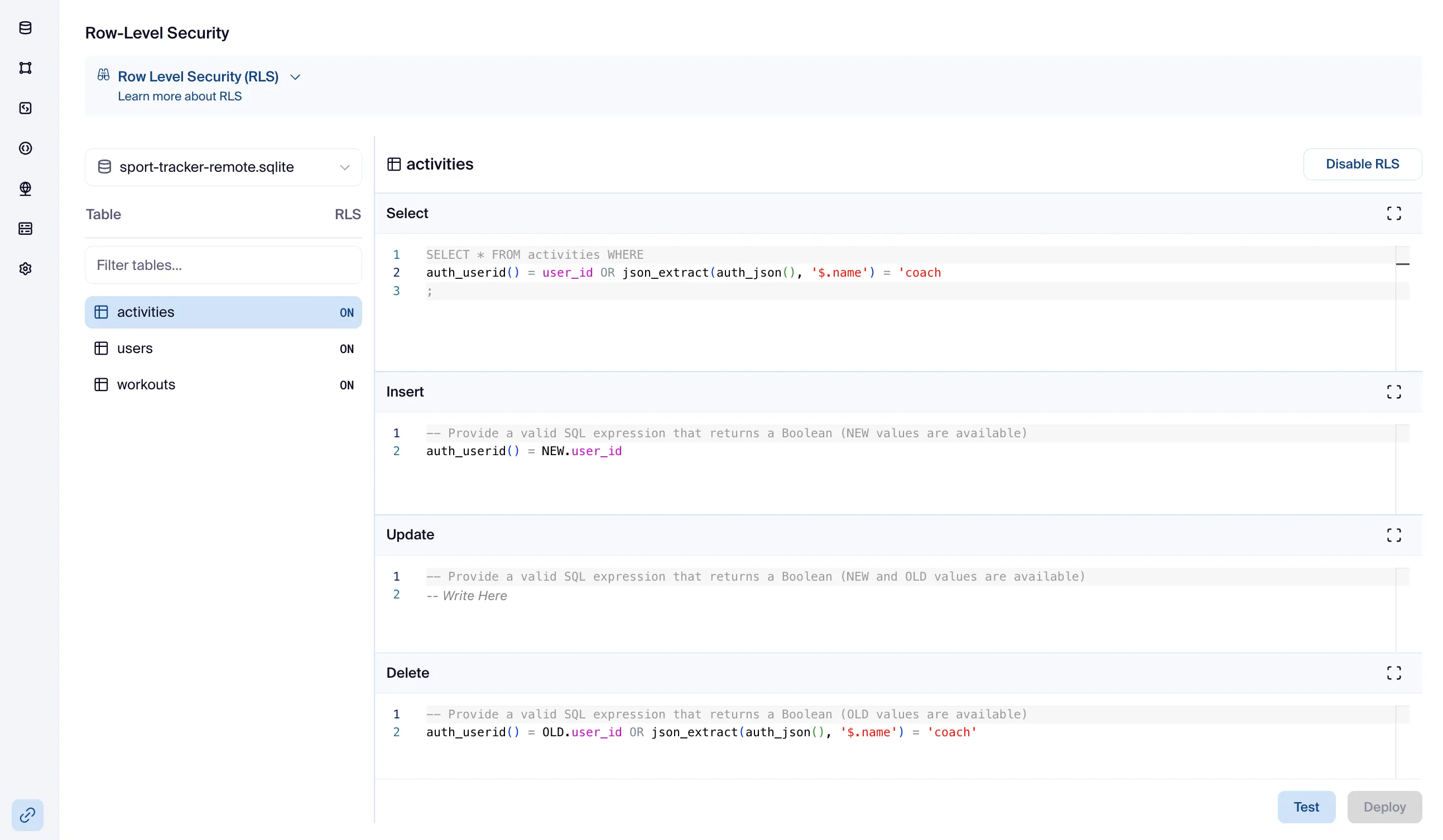

3. Configure RLS Settings: On the RLS settings page, you can define the policies for each table.



   For each table, you can specify the following RLS policies:

   • SELECT: A SQL expression that determines which rows a user can SELECT.
   • INSERT: A SQL expression that determines if a user can INSERT a new row.
   • UPDATE: A SQL expression that determines which rows a user can UPDATE.
   • DELETE: A SQL expression that determines which rows a user can DELETE.

   RLS Expressions

   The SQL expressions can be any valid SQLite expression that returns a boolean value. You can use built-in SQLite functions, and even custom functions to define your policies.

User Information Functions

To help you create dynamic RLS policies, SQLite Cloud provides two functions to retrieve information about the current authenticated user:

• auth_userid(): Returns the userid of the current token-authenticated user.
• auth_json(): Returns a JSON object with all the details of the current token-authenticated user, including user_id, name, attributes, created_at, and expires_at.

These functions are particularly useful for creating policies that are based on user attributes.

For more information on Access Tokens, see the Access Tokens documentation. The API Documentation for the Access Tokens API can be found in the Weblite section in the Dashboard.

OLD and NEW References

Your RLS policies for INSERT, UPDATE, and DELETE operations can reference column values as they are being changed. This is done using the special OLD.column and NEW.column identifiers. Their availability and meaning depend on the operation being performed:

Example

Suppose you have a tasks table with the following schema:

CREATE TABLE tasks (
  id INTEGER PRIMARY KEY,
  title TEXT,
  owner_id INTEGER,
  status TEXT
);

Here are a few examples of RLS policies you can create:

1. Users can only see their own tasks.

-- SELECT policy
owner_id = auth_userid()

2. Users can only insert tasks for themselves.

-- INSERT policy
NEW.owner_id = auth_userid()

3. Users can only update the status of their own tasks.

-- UPDATE policy
OLD.owner_id = auth_userid()

4. Users with the ‘admin’ group can see all tasks.

-- SELECT policy
json_extract(auth_json(), '$.attributes.group') = 'admin'

5. Role-Based Access within a Tenancy

-- SELECT policy
org_id = json_extract(auth_json(), '$.attributes.org_id') AND
(json_extract(auth_json(), '$.attributes.role') = 'admin' OR owner_id = auth_userid())

6. Access via a Membership Linking Table

-- SELECT policy
EXISTS (
  SELECT 1 FROM project_members
  WHERE project_members.project_id = tasks.project_id
    AND project_members.user_id = auth_userid()
)

7. Public vs. Private Record Visibility

-- SELECT policy
visibility = 'public' OR owner_id = auth_userid()

With these policies, when a user executes a query, SQLite Cloud will automatically enforce the defined RLS rules, ensuring data security and compliance.

Additional Real-World Examples

Here are a few more examples to illustrate how you can use RLS policies to solve common security challenges.

1. Team-Based Access (Multi-Tenancy)

Use Case: A user should only be able to see documents that belong to their organization or team. This is a classic multi-tenancy scenario.

Assumptions:

• Your documents table has an org_id column.
• The user’s access token contains their organization ID in the JSON attributes (e.g., {"org_id": "acme_corp"}).

RLS Policy (SELECT):

-- On the 'documents' table
org_id = json_extract(auth_json(), '$.attributes.org_id')

Explanation: This policy ensures that the org_id in the document row must match the org_id stored in the authenticated user’s token. This effectively isolates data between different organizations.

2. Content Publishing Workflow

Use Case: In a simple CMS or blog, any user (even anonymous ones, if applicable) can see articles with a published status. However, only the original author can see their own articles when they are in the draft status.

Assumptions:

• Your articles table has a status column ('draft' or 'published') and an author_id column.

RLS Policy (SELECT):

-- On the 'articles' table
status = 'published' OR (status = 'draft' AND author_id = auth_userid())

Explanation: This policy uses a boolean OR to combine two conditions. A user can see a row if:

1. The article’s status is published, OR
2. The article’s status is draft AND the user is the author.

3. Making Records Read-Only

Use Case: Once an invoice has been marked as paid, it should become immutable. No user should be able to update it.

Assumptions:

• Your invoices table has a status column ('pending', 'paid', etc.).

RLS Policy (UPDATE):

-- On the 'invoices' table
OLD.status <> 'paid'

Explanation: This policy uses the OLD reference to check the value of the status column before the update is applied. If the status is already 'paid', the condition OLD.status <> 'paid' will be false, and the UPDATE operation will be denied. This effectively makes paid invoices read-only.

Advanced: RLS and SQLite Sync

When using RLS in conjunction with SQLite Sync, it’s important to understand how they interact. The Sync protocol applies changes on a column-by-column basis, which can affect how INSERT and UPDATE policies are evaluated.

To accommodate this, SQLite Cloud offers two modes for handling RLS during sync operations, configurable via the rls_mode server setting using the SQLite Cloud builtin command SET KEY rls_mode TO <value>.

Default Mode (rls_mode = 1)

To simplify policy creation for the most common use cases, the default mode does not enforce INSERT and UPDATE policies while applying changes from SQLite Sync.

Instead, after the sync operation is complete, the SELECT policy is used to validate the final state of the row. If the user does not have permission to view the resulting row, the entire transaction is rolled back. This ensures that users cannot introduce changes that they are not allowed to see.

Manual Policy Mode (rls_mode = 0)

For more complex scenarios, such as implementing separate read/write permissions or restricting write access to specific columns, you can set rls_mode to 0.

In this mode, your INSERT and UPDATE policies are enforced for every incremental change applied by SQLite Sync. Because of Sync’s column-by-column operation, your policies must be written to permit intermediate states. This means the policies must allow NEW values for non-primary key columns to be temporarily set to their default values during the sync process.
